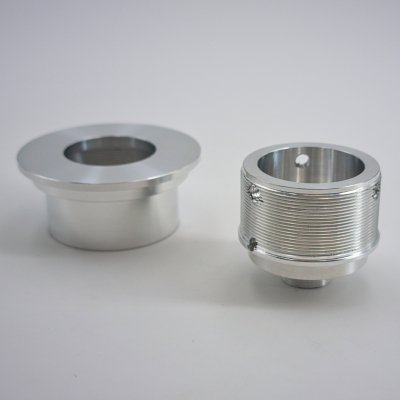

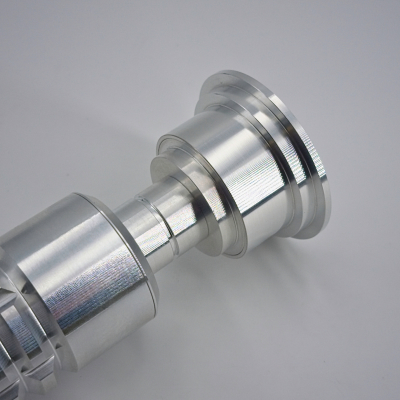

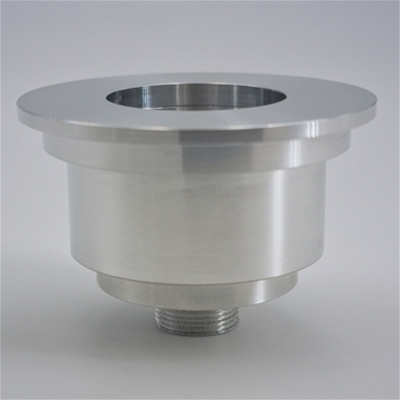

MTN Blade Holder Style 2
Designed to be used with a 1" Pixel Hilt Side Adapter which is held in place by 2x 4-40 set screws (Included). The blade holder has 4x 8-32 set screws (Included) hidden under the outer shroud.
The outer shroud is left hand threaded so that it will not unthread the rest of the parts when being loosened. When tightening it hold onto the blade to help snug it down without unscrewing the rest of the saber parts.
Blade depth with our Short 1" pixel adapter = .7" 1" Short Pixel Hilt Side Adapter
Blade depth with our NPXL 1" pixel adapter = .62" 1" NPXL V3 Hilt Side Adapter
Will screw onto any female MTN part.
MTN Parts are only recommended for light dueling.
All MHS parts should have the threads wiped clean and then lightly oiled or greased. We sell some Synthetic Grease for this. Parts that get stuck because no oil/grease was used or that are damaged by the user trying to take them apart will not be warrantied.
Designed to be used with a 1" Pixel Hilt Side Adapter which is held in place by 2x 4-40 set screws (Included). The blade holder has 4x 8-32 set screws (Included) hidden under the outer shroud.
The outer shroud is left hand threaded so that it will not unthread the rest of the parts when being loosened. When tightening it hold onto the blade to help snug it down without unscrewing the rest of the saber parts.
Blade depth with our Short 1" pixel adapter = .7" 1" Short Pixel Hilt Side Adapter
Blade depth with our NPXL 1" pixel adapter = .62" 1" NPXL V3 Hilt Side Adapter
Will screw onto any female MTN part.
MTN Parts are only recommended for light dueling.
All MHS parts should have the threads wiped clean and then lightly oiled or greased. We sell some Synthetic Grease for this. Parts that get stuck because no oil/grease was used or that are damaged by the user trying to take them apart will not be warrantied.
Excellent Part!
I received this blade holder which Tim and company powder coated for me, and as always, the work is stellar. If I could give more stars than five, I would. This shop is one of my absolute favorite places to spend my money and for all of the packages I get in the mail, I always look forward to TCSS items arriving at my doorstep the most. Above all this, Tim and the staff here are always open to ideas and willing to help me out with anything I request, even if it's just information and you honestly don't get customer service like this anymore, so it's a testament to the way the business is run. Thank you everyone here for always going the extra mile. If I my five year old self knew there would one day be a shop where I could buy parts to build my own lightsabers, I would have thought you were crazy. But here we are, and the fans are better off for it!
Excellent.
This is perfect for the Luke style hilts (ROTJ era) and obi stunt hilt.
