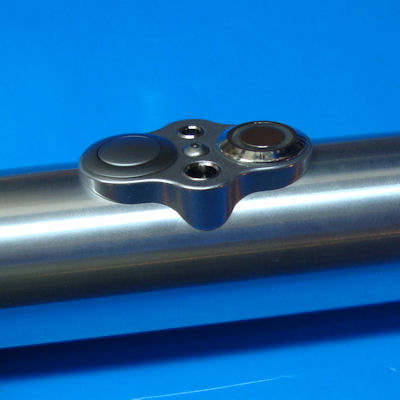

Activation box style 14
The box is 1.83" long x 1.19" wide and is held in place by a 4-40 button head screw.
Used to mount the following
2x 16mm AV switches
1x Recharge port
1x Rice port style 1
Will only fit a 3" or longer extension.
The box is 1.83" long x 1.19" wide and is held in place by a 4-40 button head screw.
Used to mount the following
2x 16mm AV switches
1x Recharge port
1x Rice port style 1
Will only fit a 3" or longer extension.
An excellent control box.
First off, ABSOLUTELY get the special hole drilling service. It is a pain to get the hole perfect without the right tools. I didn't use the r.i.c.e. port, and it is worth noting that the kill keys from TCSS can be shortened and screwed into that particular port on the box, allowing a faux-functional effect to be achieved. Functionality-wise, this is by far my favorite control box. it puts everything you need for a CFX in one place, keeps your saber from rolling off of things to a degree, and doesn't get uncomfortable during use. It looks amazing with MHS v1 Main body 5.
Everything in one place
I like this switch box for having everything for a CF based saber in one spot. The difficult part was drilling the necessary holes through the saber body since two of the components are off center. It also did make it a bit difficult to get everything to fit, though I should have used the smaller battery to help make some extra space. I did have some issues with threads that weren't sufficiently tapped, but I let the shop know about it so I don't expect it to be an ongoing issue.
