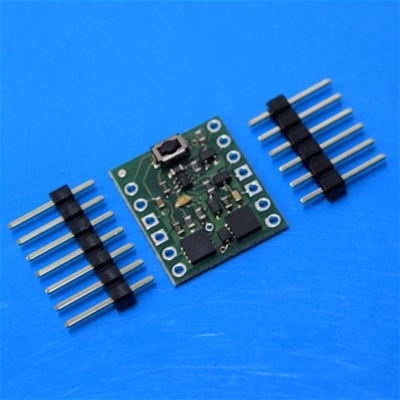

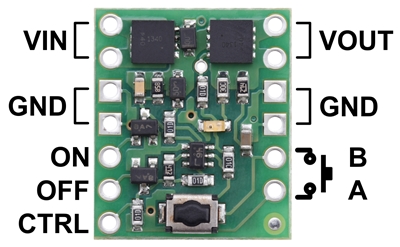

Momentary to latching converter 2.2 to 16V
Allows for the use of a momentary switch in a latching circuit.
Specifications
•Dimensions: 0.6" x 0.7" x 0.12" (without header pins installed)
•Operating voltage: 2.2-16V
•Maximum current: 6A
•Draws very little current in off state (typically under 0.01 μA)
Allows for the use of a momentary switch in a latching circuit.
Specifications
•Dimensions: 0.6" x 0.7" x 0.12" (without header pins installed)
•Operating voltage: 2.2-16V
•Maximum current: 6A
•Draws very little current in off state (typically under 0.01 μA)
Great flexibility and price
These littl guys are amazing - I use these almost exclusively in my non sounded builds. I usually remove the tactile button on the board after i have a good function test. These can be used with just about anything short of two exposed wires. hahah! id recommend these to anyone with an intermediate to advanced wiring knowledge.
Great replacement for a kill key or switch
I’m using this board to cut power to the saber in place of a kill key or high amp slide switch. It’s compact, super easy to wire and allows me to trigger board power from any momentary switch I’d like. Excellent product!
Great on several levels.
These are the greatest thing for increasing the choices available for switches in stunt sabers. I'm installing my 5th tonight. They are clearly labeled and easy for beginners or advanced installers to work with. The low cost makes them good for practicing before trying a first soundboard install too. One does need to watch placement once installed, because if it moves around in a hilt wires inside can press the board mounted switch and turn the saber off when in use.
