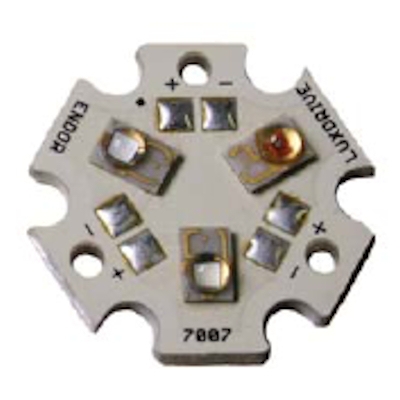

Luxeon Tri-Rebel Star LED's
These are designed to work with the 18deg Tri-Rebel Star Lens and MHS "new style" Heat Sink V3
Each LED is Individually addressed
Prices Start @ $15.00
Lumen ratings at 700mA
Red/Red/White = 90-90-235
Green/Green/White = 161-161-235
Blue/Blue/White = 58-58-235
Royal Blue/Royal Blue/White = 910mw-910mw-235
Red/Green/Blue = 90-161-58
Royal Blue/Green/Red = 910mw-161-90
Red should be ran at a max of 700mA but the other colors are good up to 1000mA
These are designed to work with the 18deg Tri-Rebel Star Lens and MHS "new style" Heat Sink V3
Each LED is Individually addressed
Prices Start @ $15.00
Lumen ratings at 700mA
Red/Red/White = 90-90-235
Green/Green/White = 161-161-235
Blue/Blue/White = 58-58-235
Royal Blue/Royal Blue/White = 910mw-910mw-235
Red/Green/Blue = 90-161-58
Royal Blue/Green/Red = 910mw-161-90
Red should be ran at a max of 700mA but the other colors are good up to 1000mA
An Amazing LED
I've purchased this item a few months ago, and I'm very impressed with the quality. I have used it in a lightsaber, and the light is extremely bright, especially in the dark. I purchased the "Green/Green/White" model, and I am impressed with the successor of the original "Luxeon Rebel Star", as it is a great ingredient for many saber enthusiasts.
Wow.
These are disgustingly bright. I have the GGW running with the greens in serial and the white set up for FOC. It wasn't too hard to wire up, but it is worth noting that each LED is centered between its pads. Positive on the left, Negative on the right.
guardian blues
just picked up my firt tri-rebel and couldn't be happier. I bought blue-blue-white and bridged the blues while using white for foc. make sure you center the LED on the heat sink as best as you can for maximum light in the blade. Anyone using foc will enjoy the tri-rebels. Great LED at a great price. THANK YOU TCSS!
