Proffie 3.9 Diagnostic Station V2

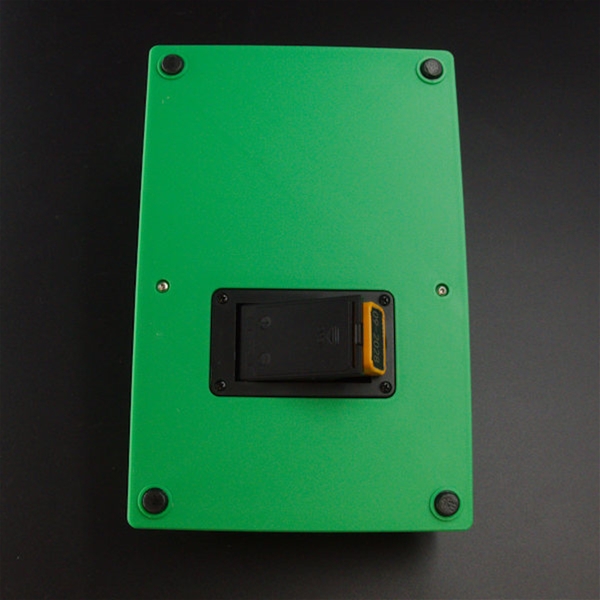

Same basic functions as the first version but we added a larger gauge, a bottom cover, easy access 9v battery, and rubber feet.
Purchasable as a kit or fully assembled
Used for testing Proffie 3.9 or other boards via the optional breakout boards. Can be used to test blades, speakers, blade plugs, Mosfets, Data Lines, batteries, and more when a Proffie 3.9 is installed in the tester,
Included Parts
- Custom PCB
- 8x pixel LED's
- 2x push button switches with caps (style may vary)
- 2x slide switches
- 28mm Speaker
- 4x Battery mounts
- 10 pin terminal block (color may vary)
- 13x Pogo pins for sound card
- Amp/Voltage gauge
- 9V Battery holder
- 4 LED Bargraph
- 6x resistors
- 7x short pogo pins for plug tester
- 13x 4-40 screws
- (optional) 3D Printed main body, sound card cradle, speaker mount, blade plug tester.
Assembly is not easy and we will not warranty any components due to soldering or miswiring issues.
The Proffie 3.9 is installed with the SD card facing down and to the left.
If you have a 3d printer and want to do your own prints just buy the kit without the 3D print option and we will E-mail you the STL Files (use the contact us form with your order number)
If you select "mount all components to PCB" and also ordered the 3d prints the unit will come fully assembled.
If you select "mount all components to PCB" and do not order the 3d prints then everything will be soldered to the PCB (except the pogo pins as they must go through the 3D printed cradle) and you will still need to wire the battery holder, speaker, and amp/volt gauge to the PCB.
10 pin header pin-out
PWR+ = Power in or out +
PWR - = Power in or out -
SPKR = External Speaker
SPKR = External Speaker
SW COM = Switch Common
MAIN = Main switch
AUX = Aux Switch
PD = pixel data
P+ = pixel positive
P- = pixel negative
